Smart home terminal blocks

WF series—providing perfect solution for smart home
Unique wire connection and disconnection identification system
PUSH-IN wiring design, safe, convenient and fast

Data & Signal Circuit Surge Protection Module (SPD)

WB series—safe and reliable surge protection module
DIN-Rail Mount
Shorts to ground when compromised
Field replaceable for protection module
Voice, Data and Signaling Protection

Customized solutions

Professional product design team
Efficient, high-precision mold design and processing team
Cost-effective product development and selection

Product Services

Customized solutions

Customized solutionsProfessional product design team Efficient, high-precision mold design and processing team Cost-effective product development and selection

Customized solutions

Customized solutionsProfessional product design team Efficient, high-precision mold design and processing team Cost-effective product development and selection

Screw type Plugs for pluggable terminal blocks

Screw type Plugs for pluggable terminal blocksPluggable terminal blocks - lock screw plug the plug, the lifting cylinder screw pressing connection technology, the product can connection section 0.08mm2 to 16mm2 in all types of wire, spacing to 2.5mm Apil) can choose, can according to need to choose the direction of the line, direction of connection, plug. Product design conforms to international standards such as IEC60998, IEC61984, UL1059, UL486E, C22.2 No.158 CSA and so on.

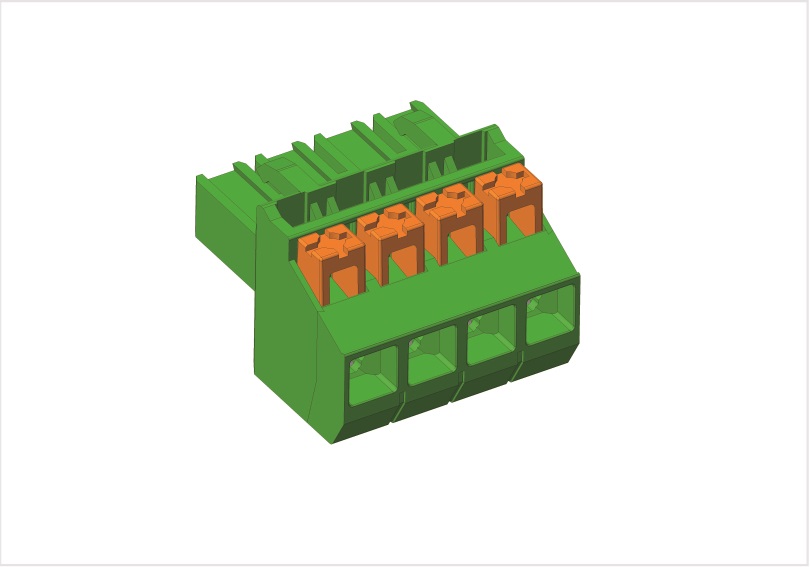

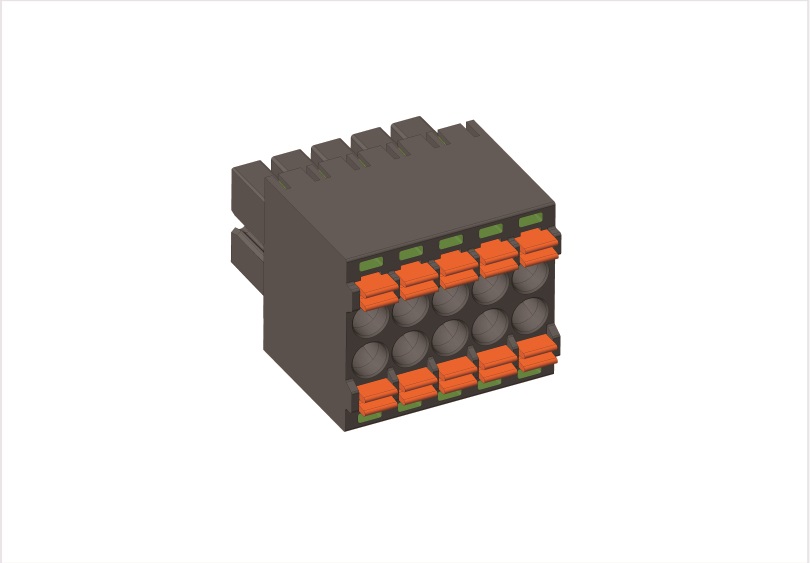

Screwless type Plugs for pluggable terminal blocks

Screwless type Plugs for pluggable terminal blocksPlug terminal - free lock screw pair plug, cage and blade type is spring steel wire connection technology, to achieve fast and efficient wiring operation.The product can connect all types of wires with a section from 0.2mm2 to 4mm2, and the spacing from 2.5mm to 10.16mm can be selected. The direction of incoming wire, connection direction and plug and unplug direction can be selected as required.The product design conforms to international standards such as IEC60998, IEC61984, UL1059, UL486E, CSA C22.2 and No.158.

Headers for pluggable terminal blocks

Headers for pluggable terminal blocksPCB terminal Headers PIN socket, socket pin with single layer, double layer staggered, double parallel and different bending angle design, can meet the choice of multi use.

PCB Screw Rising Clamp System terminal blocks

PCB Screw Rising Clamp System terminal blocksPCB printed circuit board - square button up and down type terminal, the use of the principle of the wire clip, in the design of the compact structure and strong connection two characteristics. Products can be connected section 0.08mm2 to 16mm2 in all types of wire spacing from 2.54mm to Apil) can choose, level (180 degrees), vertical (90 degrees), angle (45 degrees) a variety of line direction, with the single - and double-layer design, meet the versatile choice. Most of them to 3P, 2P as the base, according to the need for self splicing combined into any need P number. Product design in accordance with IEC60998, UL1059, UL486E, C22.2 No.158 CSA and other international standards.

PCB Screw Wire protector System terminal blocks

PCB Screw Wire protector System terminal blocksPCB printed circuit board -- shrapnel straight lock type terminal table, which provides the most suitable connection structure in the most economic way. Mainly in 3P, 2P as the base, according to the need for self splicing into any need of the number of bits. Spacing from 3.5mm to 10.16mm for selection, there is a horizontal (180 degrees), vertical (90 degrees), oblique angle (45 degrees) a variety of direction of the line. Product design in accordance with IEC60998, UL1059, UL486E, C22.2 No.158 CSA and other international standards

PCB Spring-cage terminal blocks

PCB Spring-cage terminal blocksPCB printed circuit board - spring type (no screw) terminal, which is mainly used in the form of a heart back to pull the spring connection and butterfly spring connection two, with anti vibration characteristics. And the spring connecting terminal and the lifting terminal can be replaced by each other, which greatly increases the flexibility. Products can be connected section 0.08mm2 to 10mm2 all types of wire spacing from 2.5mm to Apil) can choose, level (180 degrees), vertical (90 degrees), angle (45 degrees) a variety of line direction, in combination with the multilayer design to meet versatile choice. Product design in accordance with IEC60998, IEC60947, UL1059, C22.2 No.158 CSA and other international standards.

PCB Barrier Screw terminal blocks

PCB Barrier Screw terminal blocksPCB printed circuit board - the fence type terminal, the structure is divided into through type structure, after the block plate structure and the plug type structure. All types of wire can be connected to the 16mm2 section of the 0.5mm2, the harpoon and ring terminal collocation more reliable safety. Product spacing is divided into 6.35-21mm to choose, can provide a cover, no cover and a variety of foot type and other styles. Grid plate terminal is widely used in power supply, industrial control, information products and household appliances and other fields. Product design in compliance with international standards such as IEC60998, UL1059, UL486E, etc

Product Services

Customized solutionsProfessional product design team Efficient, high-precision mold design and processing team Cost-effective product development and selection

Customized solutionsProfessional product design team Efficient, high-precision mold design and processing team Cost-effective product development and selection

Headers for pluggable terminal blocksPCB terminal Headers PIN socket, socket pin with single layer, double layer staggered, double parallel and different bending angle design, can meet the choice of multi use.
